pymol-vitral

Visualization presets for PyMOL, aimed at molecular simulation systems: lipid bilayers, proteins and peptides. The package splits the loaded system into independent objects, applies a calibrated material and exposes numbered presets that combine one representation per component.

Requirements: PyMOL 2.x, open-source or incentive. No external dependencies.

Getting started

Three steps, in this order: load the system, load the protocol, apply a preset. The order matters. The protocol splits whatever is already in the session, so loading it before the structure leaves it with nothing to split.

1. Load the system

From the PyMOL command line. One line at a time: the Qt command bar is single-line, so a multi-line paste becomes one command.

load /path/to/membrane.pdb

Anything PyMOL reads works the same way: a protein, a membrane, a solvated box, a single frame of a trajectory.

load /path/to/protein.pdb
load /path/to/frame.pdb

From the PDB, without a local file:

fetch 4HHB, async=0

From the menu, File > Open does the same thing.

For a molecular dynamics frame, fix the periodic image before opening PyMOL, or the protein may sit split across the box edges and the solvation shell comes out empty:

gmx trjconv -s topol.tpr -f traj.xtc -o frame.pdb -pbc mol -center -dump 0

2. Load the protocol

run /path/to/pymol-vitral/vitral.pml

It splits the system into objects, prints the counts and applies a starting preset: membrane if lipids are present, protein otherwise. The log names the version and the directory it loaded from:

[vitral] v1.2.0 carregado de /path/to/pymol-vitral/pymol_vitral

Running it again always rereads from disk, so it doubles as the way to pick up an edit. Add the same line to ~/.pymolrc to have it in every session, and then this step disappears: opening PyMOL is enough.

3. Apply a preset

preset_memb1
preset_prot1

Ten of each, listed below. Switching preset does not require reloading anything: the split already happened, and each preset only changes representation and colour.

Every preset takes an optional paper argument, the column width in millimetres, which makes the scene come out ready for print in the same line:

preset_memb5 paper=85

Then colour, water and ions are adjustable without leaving the preset:

memb_color leaflet
memb_water off
prot_water shell, 6.0

And the figure goes out with:

mv_render figure.png, 2000, 1500, 300

What the log tells you

Read the counts after step 2. obj_lipid with zero atoms means the residue list does not cover the system; examples/diagnostico.pml lists what is actually in the file. The protocol also reports two things it corrected on the way in: atoms whose element it had to infer from the atom name, and residue names that look like ions but are not.

Install

No install step. Clone or unpack the repository anywhere; vitral.pml resolves its own directory, so it works from any location.

Requirements: PyMOL 2.x or 3.x, open-source or incentive. No external dependencies.

Objects

The split produces one object per component, each with its own enable dot in the side panel.

Object	Content
obj_lipid	lipids, subdivided into lip_head, lip_phos, lip_glyc, lip_tail
obj_prot	protein or peptide
obj_wat	water
obj_ions	ions
obj_lig	ligands
obj_nucl	nucleic acid

How the lipid layers are found

obj_lipid is split into four layers, and none of them comes from a list of atom names: nomenclature varies between CHARMM, Berger, Slipids and GROMOS while the topology does not.

Layer	Criterion
lip_phos	phosphorus plus the oxygens bonded to it
lip_head	nitrogen and its neighbouring carbons, plus whatever sits beyond the phosphate
lip_glyc	the remaining ester oxygens and the carbons adjacent to them
lip_tail	the complement

The head takes three passes, in this order, and each one only fills what the previous left empty.

Nitrogen. Reaches choline and ethanolamine, so PC and PE resolve chemically. It is also the only pass that works on coarse-grained systems.

Position. Phosphatidylglycerol, phosphatidylinositol, phosphatidylserine and cardiolipin carry no nitrogen at all, and in a mixed system that leaves most lipids with no head: the layer disappears from the figure and moiety colouring shows three bands instead of four. What defines a polar head is not its chemistry, which varies by species, but its position: it is the part facing the solvent, beyond the phosphate. The comparison is per molecule against its own phosphorus, not against the mean of the leaflet, because with the mean the molecules sitting deeper than average lose the head entirely. This assumes the membrane normal along z, the same premise as memb_color leaflet.

Name. Two cases escape position, and neither is a failure of it: a head folded inwards is not beyond the phosphate, and the central glycerol of cardiolipin sits between the two phosphates, so it is more internal than they are by construction. For those there is a CHARMM dictionary, applied per species and only where fewer than half the molecules were left uncovered. The log says when it fires.

Measured on a mixed system of 200 lipids across six species plus cardiolipin:

Passes	Lipids with a head
Nitrogen only	29 per cent
Nitrogen and position	84 per cent
All three	100 per cent

Protein presets

Ten presets, rendered below from prot/4hhb.pdb, haemoglobin: four chains, four haems, 221 waters. Every one takes an optional paper argument, the column width in millimetres, which makes the scene come out ready for print in the same line: preset_prot3 paper=85.

load prot/4hhb.pdb
run /path/to/pymol-vitral/vitral.pml

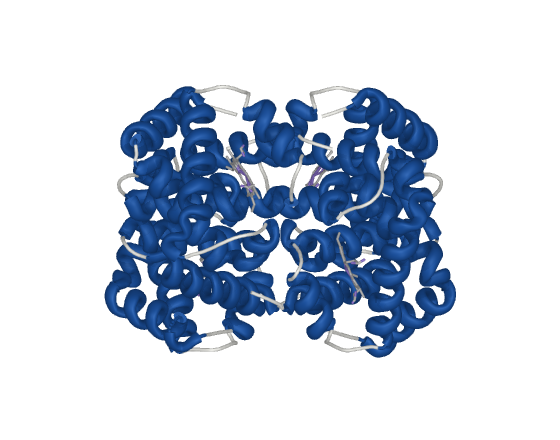

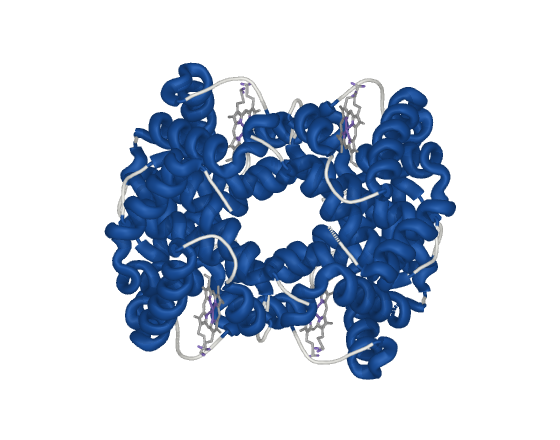

preset_prot1 cartoon by secondary structure

Domain topology.

preset_prot1

Element	Representation
Protein	cartoon: oval for sheet, automatic for helix, loop elsewhere
Colour	helix blue, sheet red, loop white
Ligands	sticks, radius 0.22
Ions	spheres, scale 0.45
Water	off

The only preset that communicates global topology. Cartoon receives no ambient occlusion in PyMOL, so this is the scene with the least contact relief.

Side	Top

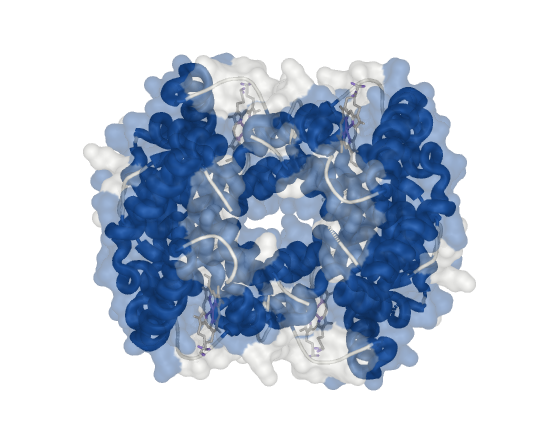

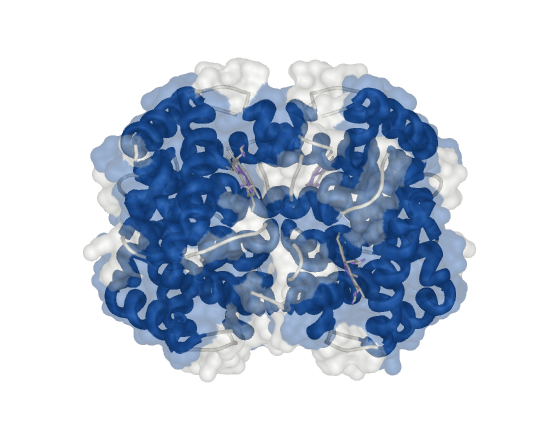

preset_prot2 cartoon under a ghost surface

Binding site.

preset_prot2

Element	Representation
Protein	cartoon under a molecular surface at transparency 0.55
Colour	secondary structure
Ligands	sticks, radius 0.22, visible through the surface
Ions	spheres, scale 0.45
Water	off

Keeps the molecular outline without losing the fold. An opaque surface would bury the ligand.

Side	Top

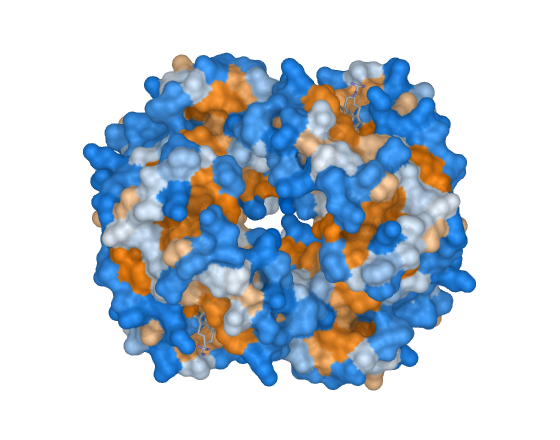

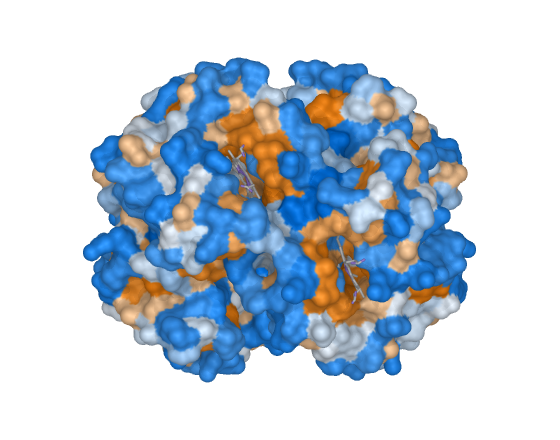

preset_prot3 solid surface by hydrophobicity

Interaction face, amphipathicity.

preset_prot3

Element	Representation
Protein	solid molecular surface, solvent radius 1.4
Colour	Kyte-Doolittle gradient
Ligands	sticks, radius 0.22
Ions	spheres, scale 0.45
Water	off

The surface does receive ambient occlusion, so this is the scene with the most relief. It writes to the B-factor column; prot_restore_b puts the original values back.

Side	Top

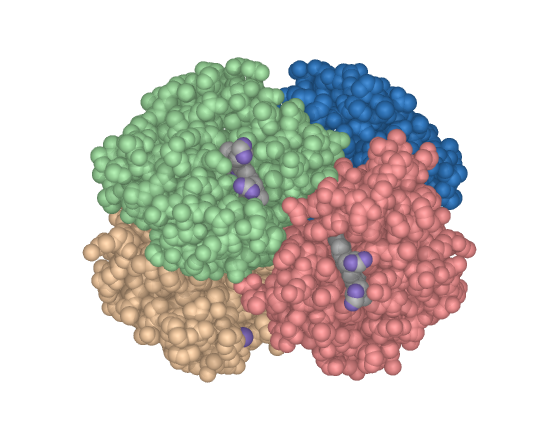

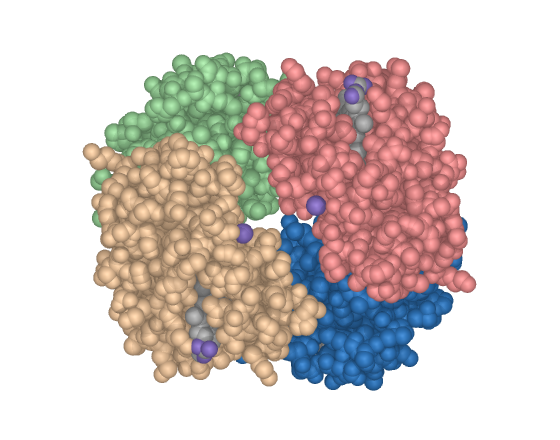

preset_prot4 spacefill by chain

Complex architecture.

preset_prot4

Element	Representation
Protein	spheres at van der Waals radius, scale 1.0
Colour	one per chain, from an eight-colour cycle
Ligands	spheres at van der Waals radius
Ions	spheres, scale 0.45
Water	off

Occupied volume and packing. In a multi-chain complex this is the most direct way to show the arrangement of the assembly.

Side	Top

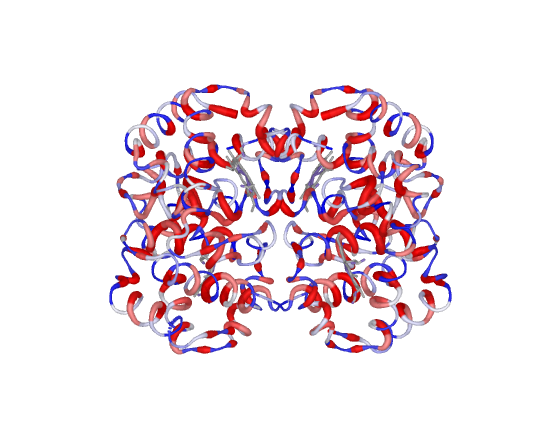

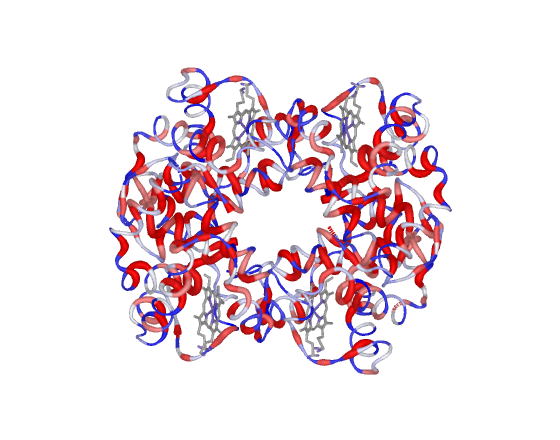

preset_prot5 putty by b-factor

Flexibility.

preset_prot5

Element	Representation
Protein	cartoon in putty mode, thickness 0.6 to 3.5, radius 0.35
Colour	B-factor as deposited
Ligands	sticks, radius 0.22
Ions	spheres, scale 0.45
Water	off

Thickness encodes the B-factor: a flexible region comes out thick and red. Valid for experimental structures. On a predicted model the B column usually carries pLDDT, whose scale means the opposite.

Side	Top

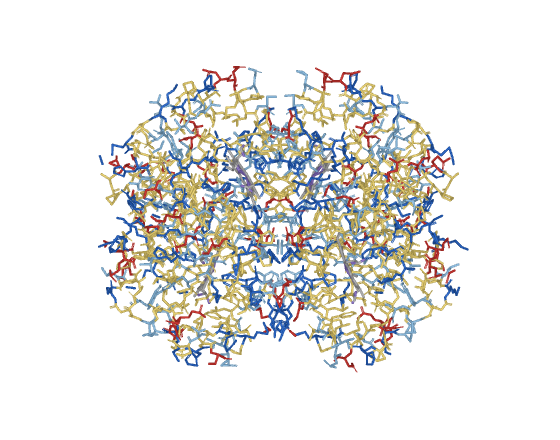

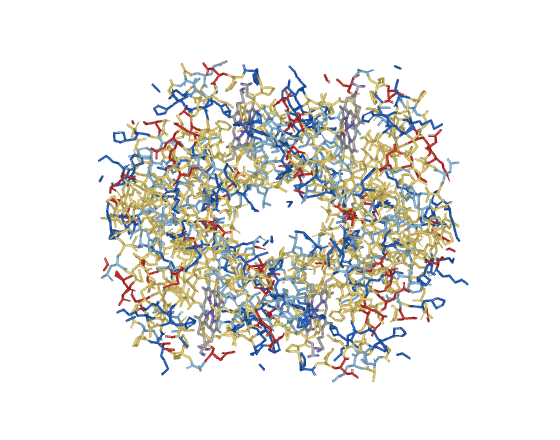

preset_prot6 all-atom licorice by charge

Peptides.

preset_prot6

Element	Representation
Protein	all-atom sticks, radius 0.20, side chain helper off
Colour	basic blue, acidic red, polar light blue, apolar yellow
Ligands	sticks, radius 0.22
Ions	spheres, scale 0.45
Water	off

For peptides, where cartoon says little: there is no global topology to summarise and the information is in the side chain. Above 60 residues it warns and the scene becomes an illegible mass.

Side	Top

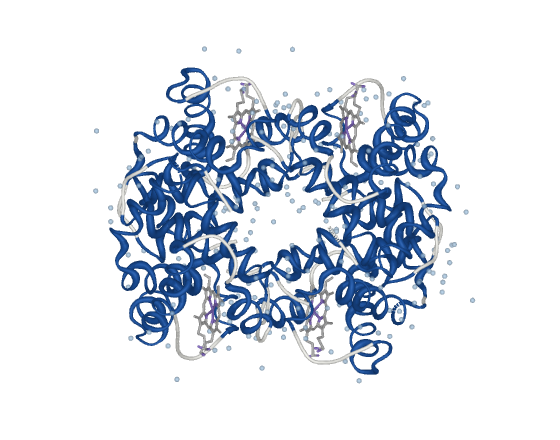

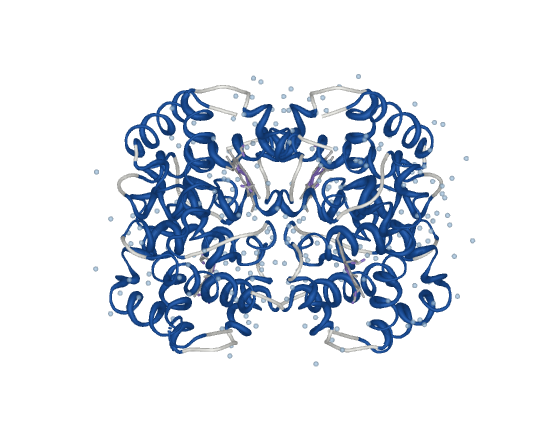

preset_prot7 solvated system

MD box, solvation shell.

preset_prot7

Element	Representation
Protein	cartoon, oval sheet and loop
Colour	secondary structure
Water	only within 4.0 A of the protein, selected by byres
Ions	only within 6.0 A of the protein
Ligands	sticks, radius 0.22

Discards bulk water and ions, which in a typical box are more than 90 per cent of the atoms and hide the solute entirely. Takes the shell radius: preset_prot7 6.0.

Side	Top

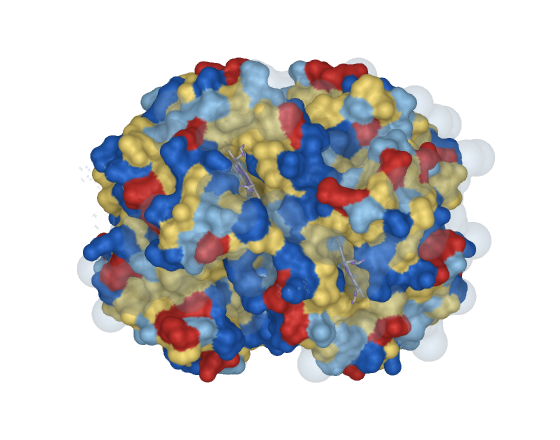

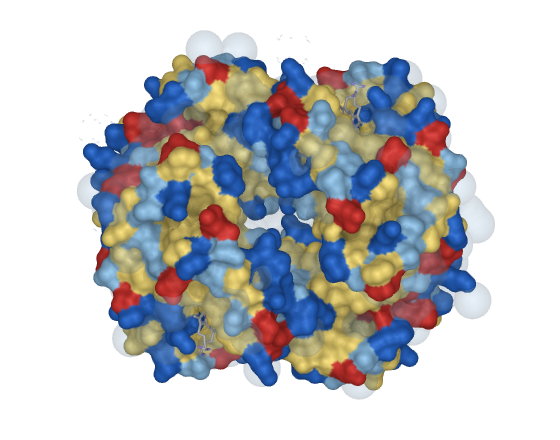

preset_prot8 full box

The simulated system as a whole.

preset_prot8

Element	Representation
Protein	molecular surface
Colour	formal charge
Water	surface at transparency 0.72, inflated oxygen radius
Ions	opaque core with a translucent solvation shell
Ligands	sticks, radius 0.22

Illustrates box dimensions and the solute to solvent ratio. It does not serve to analyse the protein: the solvent volume covers it by construction.

Side	Top

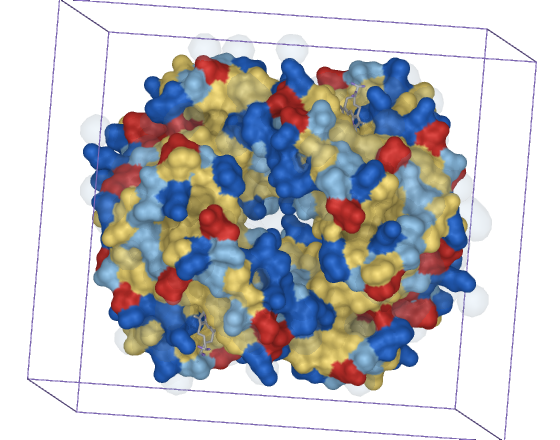

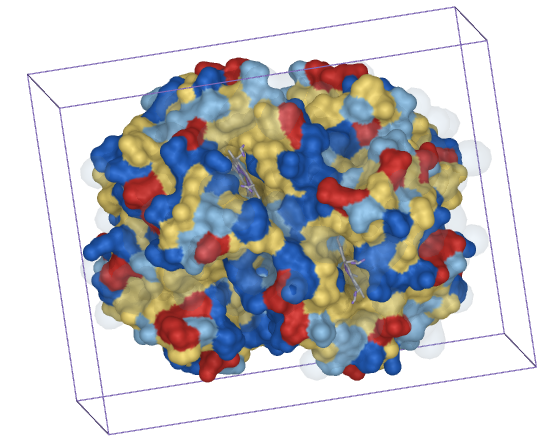

preset_prot9 simulation box, measured

Box dimensions.

preset_prot9

Element	Representation
Protein	molecular surface
Colour	formal charge
Water	gaussian field at transparency 0.82
Ions	spheres, scale 0.45
Box	twelve edges drawn as lines, from the extent of what is loaded

The box comes from the extent of the loaded system rather than a CRYST1 record, which MD frames often lack. It prints the dimensions to the log, ready for the caption.

Side	Top

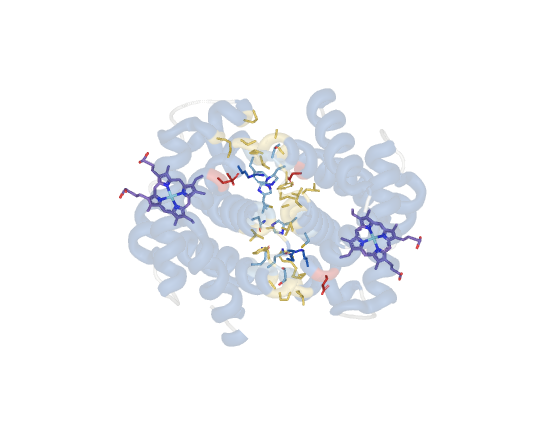

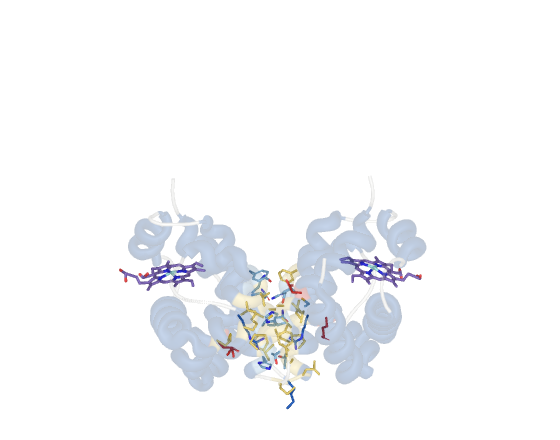

preset_prot10 interface in licorice

Where two chains, or protein and ligand, touch.

preset_prot10

Element	Representation
Protein	cartoon at transparency 0.72, side chain helper on
Colour	secondary structure
Contacts	side chains in opaque sticks, radius 0.20
Contact colour	carbon by residue class, everything else by element
Ligands	sticks, radius 0.24, own carbon colour
Water	off

With more than two chains it shows the pair with the largest contact and hides the rest: a tetramer puts three different interfaces in one frame and none of them reads. Takes the pair: preset_prot10 cadeias=A C. Surface is the wrong representation here, because a closed surface hides the contact area, which sits between the two parts.

Side	Top

Membrane presets

Ten presets, rendered below from memb/bilbo_preview.pdb: a mixed bilayer of six lipid species plus cardiolipin, 64k atoms, written with a zero B column, which is what a molecular dynamics frame looks like. The paper argument works the same way here.

load memb/bilbo_preview.pdb
run /path/to/pymol-vitral/vitral.pml

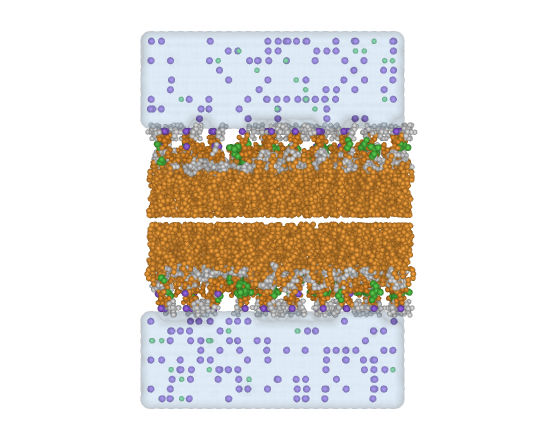

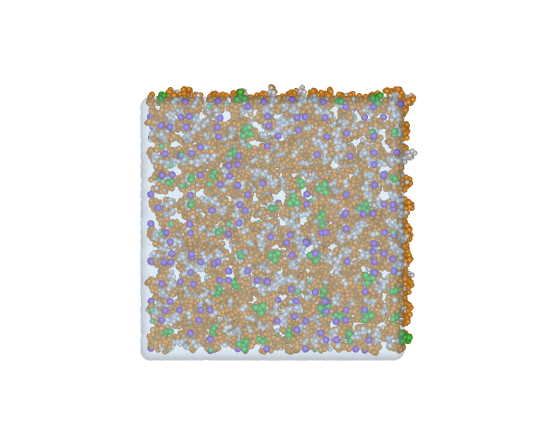

preset_memb1 stratified spheres

General reading, layer organization.

preset_memb1

Element	Representation
Lipid	spheres, scale 0.55, heads at 0.66
Colour	one per chemical moiety: head, phosphate, glycerol, tail
Ions	opaque spheres, scale 0.5
Water	molecular surface at transparency 0.62

The gap between spheres is what preserves the distinction between the four layers, which a full spacefill erases.

Side	Top

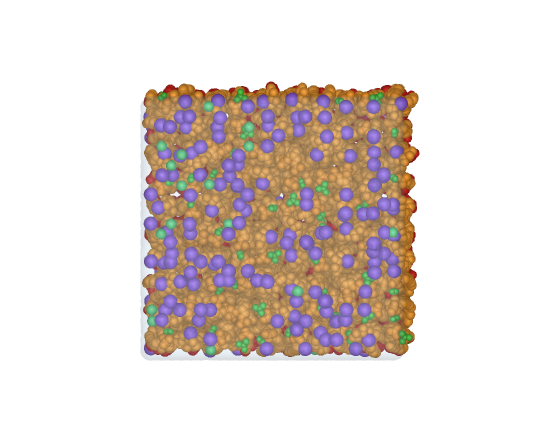

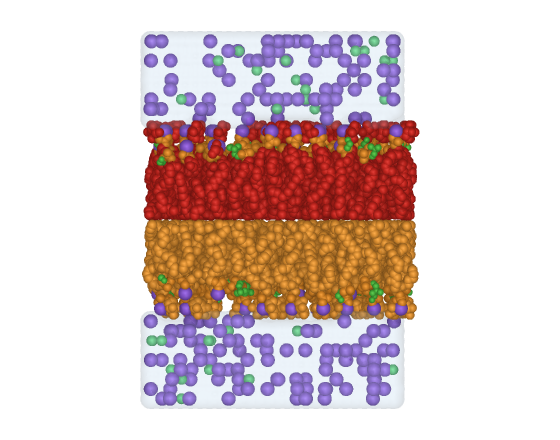

preset_memb2 solid spacefill

Occupied volume, the barrier.

preset_memb2

Element	Representation
Lipid	spheres at van der Waals radius, scale 1.0
Colour	one per leaflet
Ions	spheres at real radius, consistent with the lipid
Water	molecular surface at transparency 0.78

Shows occupied volume and packing. Internal organization disappears by construction: what you see is the barrier.

Side	Top

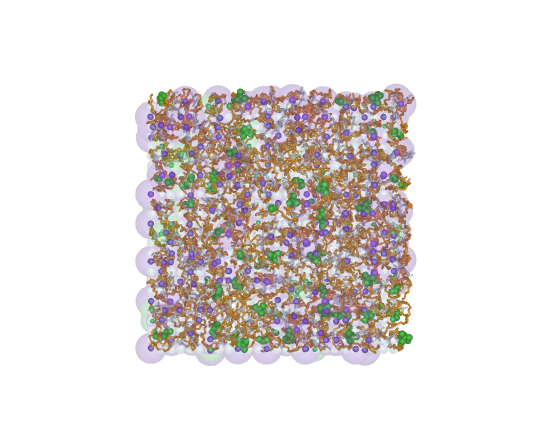

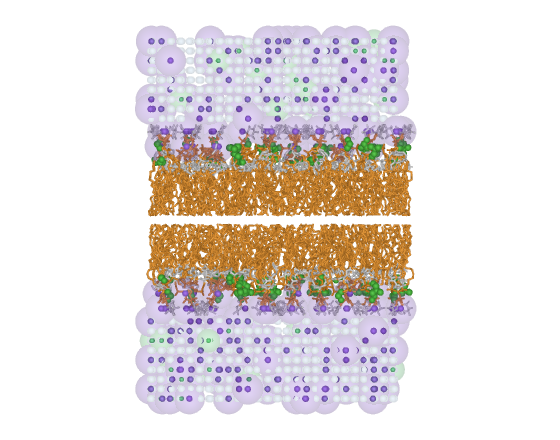

preset_memb3 licorice with highlighted ions

Ion to polar head interaction.

preset_memb3

Element	Representation
Lipid	sticks, radius 0.30, heads as spheres at 0.45
Colour	one per chemical moiety
Ions	opaque core with a translucent shell at 0.72, suggesting solvation
Water	translucent spheres, scale 0.35

Licorice lets the tail conformation show, which spacefill hides.

Side	Top

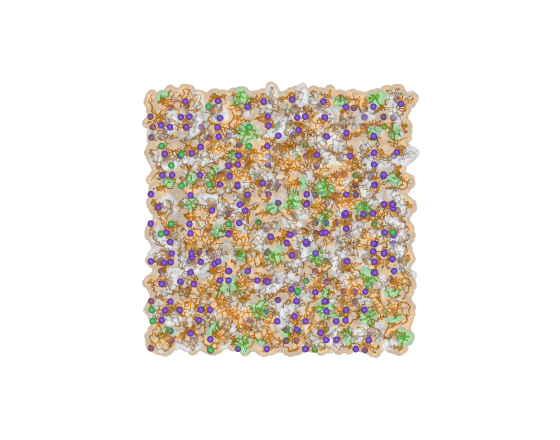

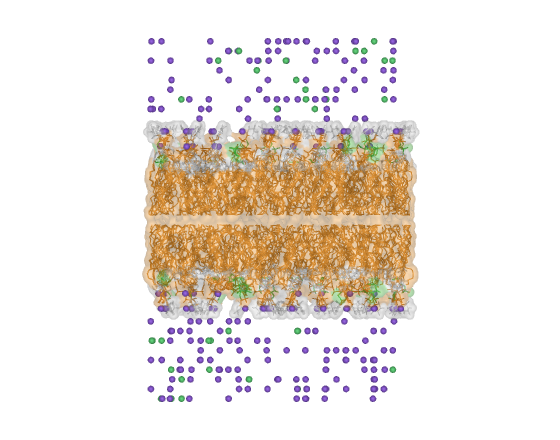

preset_memb4 ghost bilayer

Inserted peptide.

preset_memb4

Element	Representation
Lipid	molecular surface at transparency 0.58 over thin sticks, radius 0.16
Colour	one per chemical moiety
Ions	spheres with an inflated mesh, radius 3.0
Water	off, deliberately
Protein	shown if present

Preserves the membrane outline without hiding what is inside it. The water is off on purpose: the solvent surface would cover the object of interest.

Side	Top

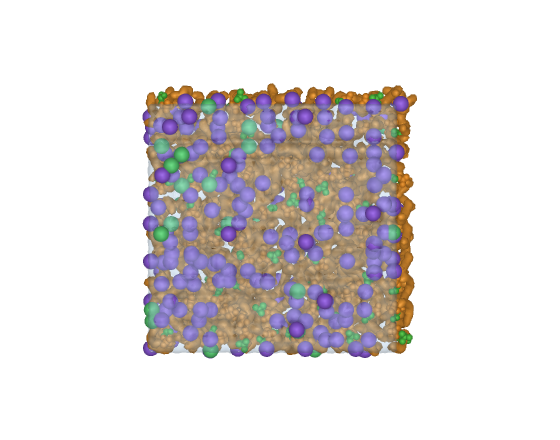

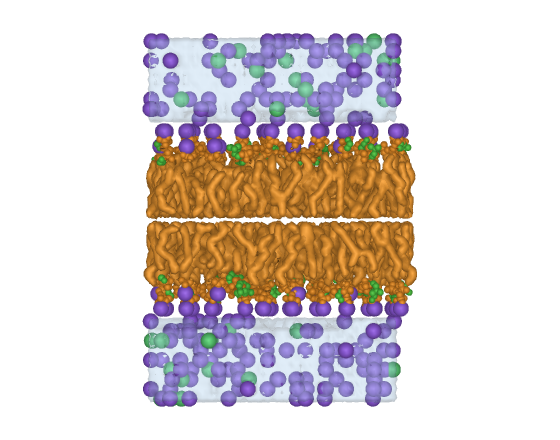

preset_memb5 continuous hydrophobic core

Illustration, large systems.

preset_memb5

Element	Representation
Lipid	tails as a single gaussian isosurface, heads and phosphates as spheres at 0.75
Colour	tail orange, head green, phosphate amber
Ions	opaque spheres, scale 0.85
Water	continuous gaussian field

Replaces thousands of tail atoms with one smooth surface. Lightest preset for large systems and the closest to scientific illustration. The isolevel comes from the map histogram, not a fixed value, and it falls back to thin sticks if the map comes out empty.

Side	Top

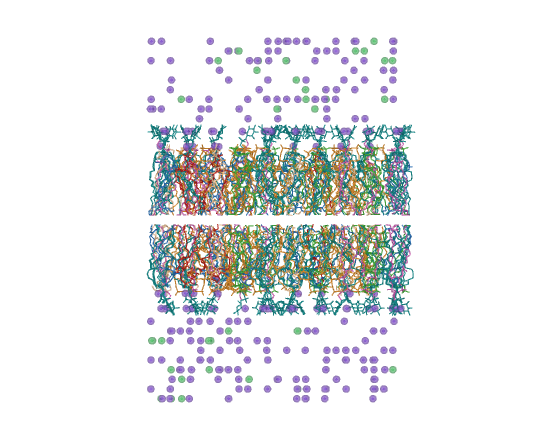

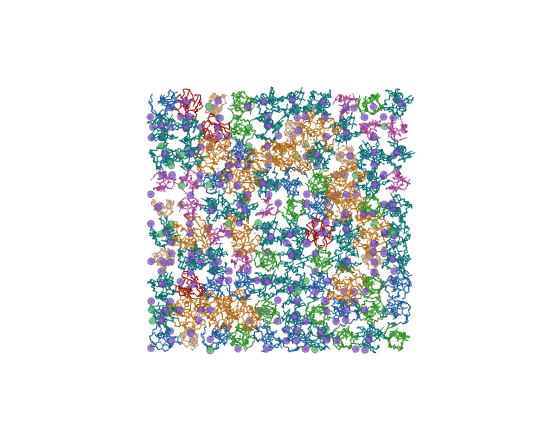

preset_memb6 fast navigation

Not a figure.

preset_memb6

Element	Representation
Lipid	lines, width 1.2
Colour	one per lipid species
Ions	dots
Water	off
Ambient occlusion	off

Exists because ray tracing and ambient occlusion make rotation unusable on a large system. Frame the scene here, then apply an expensive preset.

Side	Top

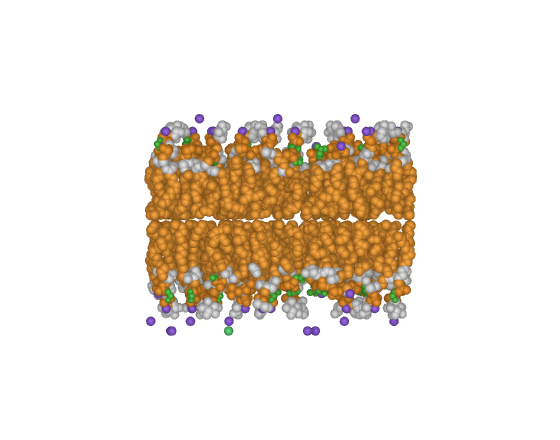

preset_memb7 cross-section

The bilayer interior.

preset_memb7

Element	Representation
Lipid	central slab in spacefill, scale 1.0
Colour	one per chemical moiety, exposed on the cut face
Ions	spheres within 8 A of the slab
Water	off
Camera	along the cut axis

The cut is a coordinate selection, not the camera clipping plane, so rotating afterwards does not change what is exposed. Takes the axis: preset_memb7 0 for x, 1 for y, 2 for z.

Side	Top

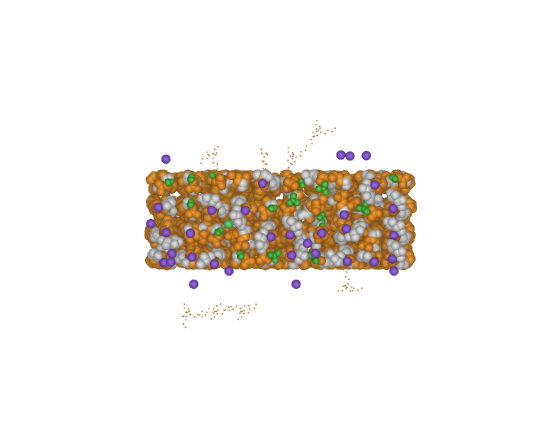

preset_memb8 annular lipids

Protein to lipid contact.

preset_memb8

Element	Representation
Lipid in contact	licorice, radius 0.24, opaque
Rest of the bilayer	sticks, radius 0.10, transparency 0.72
Colour	contacts by moiety, the rest neutral grey
Ions	small spheres, scale 0.4
Water	off

Answers which lipids touch the protein. Needs a protein in the session, and takes the contact radius: preset_memb8 7.0.

Side	Top

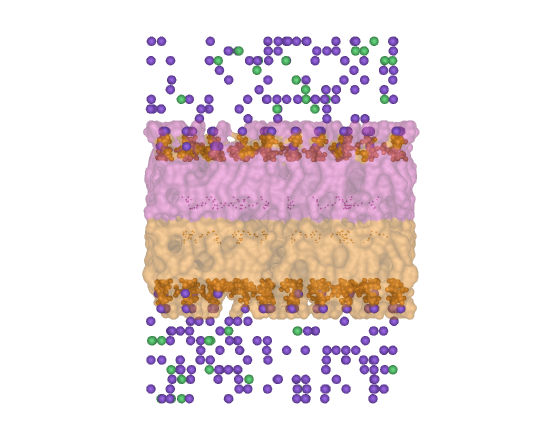

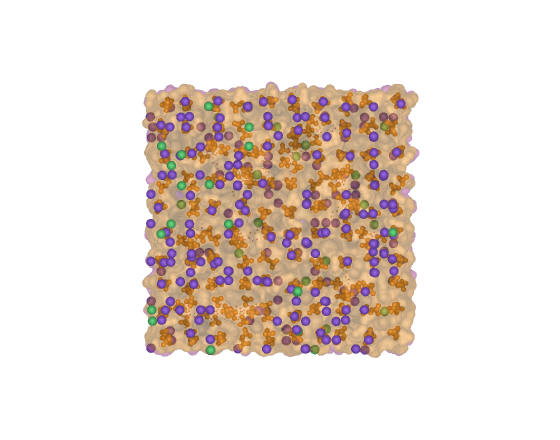

preset_memb9 separated leaflets

Leaflet asymmetry and thickness.

preset_memb9

Element	Representation
Upper leaflet	molecular surface at transparency 0.45
Lower leaflet	molecular surface, second colour
Phosphates	spheres, scale 0.55, marking both planes
Ions	spheres, scale 0.5
Water	off

The two surfaces let the separation between the phosphate planes be read by eye, and a composition difference between leaflets shows up as a volume difference. The midplane comes from the mean z of the phosphates.

Side	Top

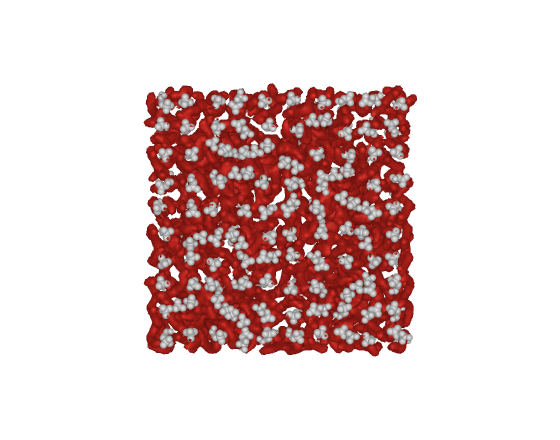

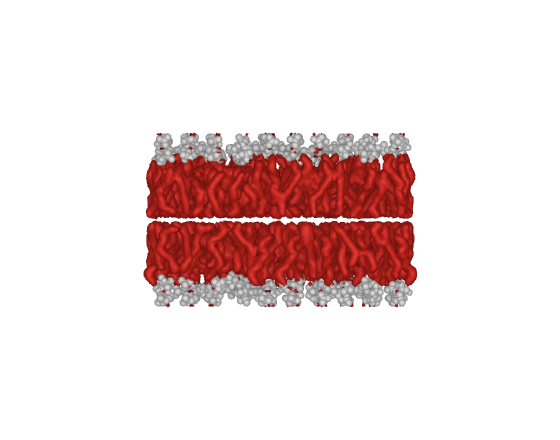

preset_memb10 two colours, for print

Reduction to one column, black and white.

preset_memb10

Element	Representation
Lipid tails	gaussian isosurface, dark
Heads and phosphates	spheres, scale 0.8, light
Ions	off
Water	off

Two colours only, separated by lightness rather than hue, and nothing secondary competing for attention. Everything that is not the bilayer leaves the scene.

Side	Top

Colour, water and ions

memb_color   moiety | leaflet | type | depth
memb_water   off | surface | spheres | field
memb_split
memb_protein
prot_color   ss | chain | charge | hydro | bfactor | rainbow
prot_water   off | shell | spheres | surface | field
prot_ions    off | spheres | vdw | halo | mesh | shell
prot_split
prot_auto
prot_restore_b

shell exists in the protein module only. It shows water or ions within a radius of the solute, selected by byres.

Material, lighting and output

mv_material
mv_ao          off | soft | medium | strong | extreme
mv_shadows     off | soft | medium | hard
mv_realism     studio | depth | dramatic | flat
mv_desaturate  0.18
mv_paper       85
mv_grayscale   1
mv_extent      obj_lipid
mv_render      figure.png, 2000, 1500, 300
mv_reload

mv_reload re-imports the package from disk. Running vitral.pml again does not: import finds the package already in sys.modules and hands back what is in memory, so an edit appears to have no effect and a preset keeps printing the previous version's message.

Ambient occlusion is on in every preset except preset_memb6, which turns it off to keep navigation responsive. ambient_occlusion_scale is the sampling distance in angstrom; PyMOL defaults to 25, which is calibrated for spheres and saturates on a protein surface, where wide cavities come out as black patches. The levels here sample between 8 and 22. Measured in both regimes: on membrane spheres 12 and 25 render indistinguishably, and on a surface only the lower value is usable. It does not reach cartoon: PyMOL bakes it into sphere and surface geometry only, so a cartoon-based preset carries no contact relief.

Each level sets several parameters at once. mv_realism overrides mv_shadows, which overrides mv_ao: apply them from general to specific. mv_paper takes a column width in millimetres, turns off cast shadows, sets orthoscopic projection and prints the target resolution.

mv_grayscale rewrites every named colour in use to its own BT.601 luminance and puts the originals back on the way out. PyMOL has no grayscale setting, so a gradient applied by spectrum stays coloured and the log says how many colours it could not reach.

Rebuilding the images

The figures above come from the two systems in this repository. To regenerate them after changing a preset:

/Applications/PyMOL.app/Contents/MacOS/PyMOL -cq tests/make_gallery.py

It renders each preset from the side and from the top, in orthoscopic projection, and skips what already exists in docs/img, so it can be interrupted and resumed. Delete the files you want redone.

Framing is set per system, because the two shapes are different: a bilayer is wide and thin and fills the width of the frame, so it takes a 6 A margin, while a globular protein takes 3 A or it would come out too small to show detail. Both use complete=1, which is what guarantees the geometry is not clipped.

Tests

/Applications/PyMOL.app/Contents/MacOS/PyMOL -cq tests/run_presets.py

Runs all twenty presets against four synthetic systems and checks that B-factors survive, gaussian_resolution is restored, promised surfaces exist and ambient occlusion lands where it should. See tests/.

Documentation

Written in Portuguese.

File	Content
passo-a-passo.md	Numbered flows, command by command. Start here.
presets.md	What each preset shows and which question it answers.
limitacoes.md	PyMOL limitations and common problems, with cause and fix.
adaptacao.md	Where to edit for another force field, scale or new preset.
decisoes.md	Design decisions and the constraint behind each one.

Layout

pymol-vitral/
├── vitral.pml              # entry point
├── pymol_vitral/
│   ├── __init__.py         # command registration and system detection
│   ├── core.py             # palette, material, lighting, output
│   ├── membrane.py         # six membrane presets
│   └── protein.py          # eight protein presets
├── docs/
├── examples/               # ready sequences, run with @
└── legacy/                 # earlier scripts, unmaintained

Examples

@/path/to/pymol-vitral/examples/figura_membrana.pml
@/path/to/pymol-vitral/examples/figura_peptideo.pml
@/path/to/pymol-vitral/examples/md_solvatada.pml
@/path/to/pymol-vitral/examples/diagnostico.pml

diagnostico.pml draws nothing. It lists residue names, atom names and the atoms per residue ratio, to identify the nomenclature of an unknown system.

License

MIT.
